Security Drones
A security drone is an advanced surveillance technology used to enhance security across various sectors, including border monitoring, critical infrastructure protection, and urban public safety. Security drones are typically equipped with high-resolution cameras, thermal sensors, intrusion detection systems, and long-range communication, , these drones can detect and track suspicious activities over large areas in real-time. Governments and municipalities are currently investing in drone-based surveillance systems to strengthen civil security. Cominthesky’s drone engineering office has developed two dedicated security drone systems tailored to meet these emerging needs.
-
Super Eagle Security Drone : This drone system is a versatile security drone system designed for monitoring sensitive sites, open-air storage facilities, and large private properties. Its robust design and smart detection capabilities make it an ideal solution for high-risk zones requiring continuous aerial surveillance.
-
Flying Sensor Security Drone (FSS3) : This drone system is a specialized security drone system engineered for nuclear power plants and industrial sites with SEVESO classification due to potential environmental hazards.

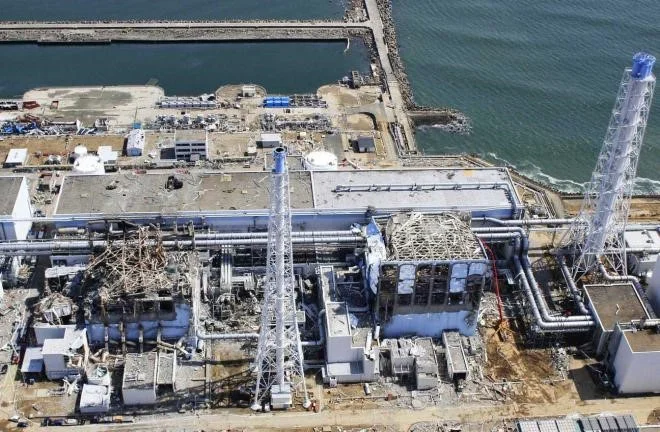

Security Drone for Nuclear Facilities and SEVESO-classified Sites
In 2014, Edouard Guilhot, then CEO of Civic Drone, won a public tender with ILL (Institut Laue Langevin), a nuclear reactor located near the CEA in Grenoble, to deliver two customized Flying Sensor (FSS3) drone systems for the nuclear facility. he goal was to deliver 2 custom-made Flying Sensor FSS3 drone systems tailored for nuclear plant security. These drones were designed to support crisis management scenarios, such as the hypothetical cracking of the reactor’s containment structure. This risk was linked to a potential tsunami-like wave triggered by the rupture of an EDF dam located about 20 km upstream, which itself could be caused by major seismic activity along a fault line extending from northern Italy through the Alps.
Key Functions of the Flying Sensor FSS3 Security Drone
-
Autonomous, pre-programmed flights with no human pilot required
-
Automated delivery of multiple radiation measurement probes to various waypoints in a single flight, with sub-meter accuracy
-
Payload flexibility: the same drone can carry an alternative load to collect 4 atmospheric samples across different waypoints
-
Operates reliably under heavy rain and wind gusts up to 70 km/h
-
Flight range up to 10 km around the reactor site
-
Earthquake-tested: resistant to strong vibrations
-
Operational in magnetically active environments without flight disruption
Advantages of the Flying Sensor FSS3’s Gyrocopter-inspired Design
-
Unique gyrocopter-style design offers superior flight efficiency
-
Compact moment of inertia: all mass components are close to the center of gravity, ensuring better stability
-
Protected by two patented technologies
-
Can make contact with obstacles without damage when equipped with its protective shield
-
Low blade rotation speed (800 rpm) for quieter operation, making it less stressful in sensitive environments
-
Poised to break endurance records for this type of drone architecture
-
Fully self-reliant technology: no external dependencies, immune to cyber-espionage or remote hacking attempts
Technical Specifications of the FSS3 Security Drone
Dimensions
Ø 110 cm × H 70 cm
Weight
4 – 7 kg
Flight time
1h30
Maximum Speed
50km/h
Operating Temperature
De -10°C à 40°C
Equipment
Double GPS +
RTK
Lidar
Caméra
Scenarios Supported
S1 S2 S3
Maximum Speed
60 à 70 km/h

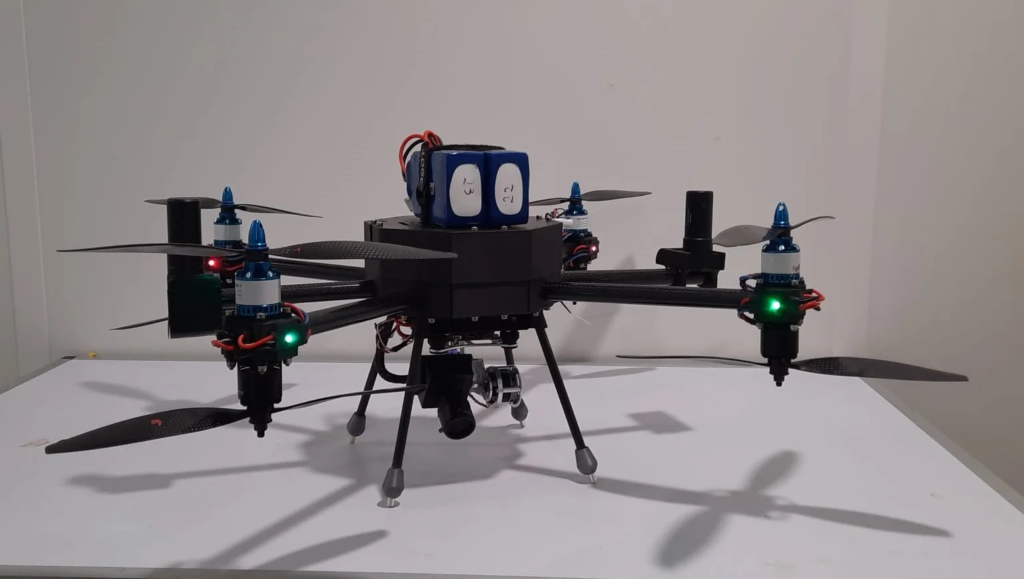

Super Eagle: Security Drone for Industrial Sites
A security drone is a powerful tool for monitoring industrial sites. Equipped with cutting-edge technologies like night vision, thermal sensors, and high-resolution cameras, this drone can detect and report intrusions or incidents in real time. its ability to conduct regular patrols and cover vast areas quickly and flexibly makes it an essential asset for enhancing the security of industrial facilities. By integrating this security drone into their surveillance strategies, companies strengthen their response capabilities, reduce risks, and ensure the safety of both assets and personnel.
Key Benefits of the Super Eagle Security Drone
OctoQuad 10″ configuration
-
Wide payload compatibility
-
Compact design with low footprint
-
Easy maintenance
-
Weight < 4 kg
-

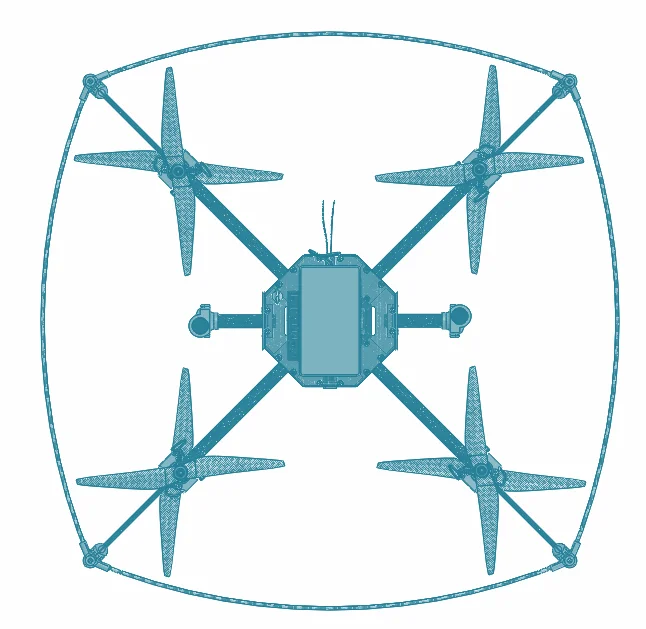

Protective dome to prevent damage in case of collision
-
Fully equipped instrumentation
-
Exceptional flight stability
-
Rugged and reliable (flies 7/8)
-
Onboard intelligence system
-
4G connectivity for real-time data transmission
-
Automatic self-charging capability
4G Telemetry
-
Permanent Communication
-
Remotely Operated from the Control Station (via PC and LAN connection)
-
Dual GPS (no compass needed)
-
Automatic Recharging
-
RTK: Precision Landing
-
IP43 Protection (Capable of Flying in the Rain)

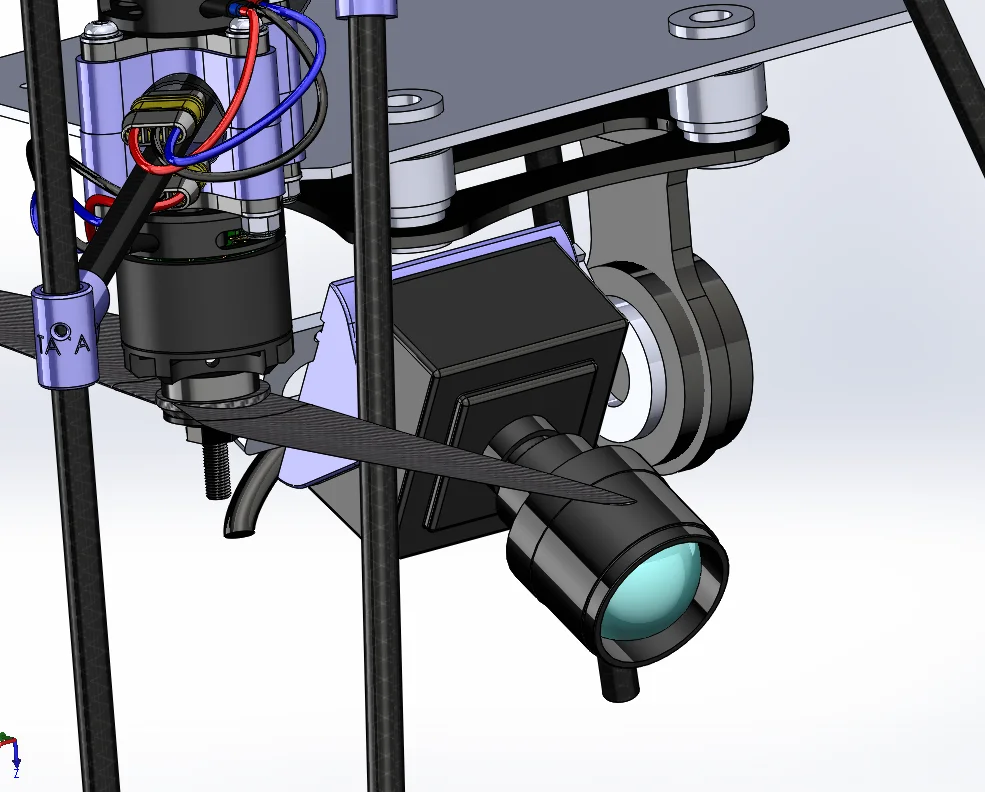

IP Video
-
Video camera integrated into the local surveillance network
-
Remotely piloted in immersive view from a PC
Super Eagle Security Drone: Technical Specifications
Dimensions
70 x 70 cm.
Weight
4 kg
Flight Time
45’
Maximum Speed
70km/h
Operating Temperature
De -10°C à 40°C
Equipment
Double GPS +
RTK
Lidar
Caméra
Temps réel
Flight Scenarios
S1 S2 S3
Control System
Station sol avec multiple redondance
RF Full duplex
Maximum Payload Capacity
2 kg
